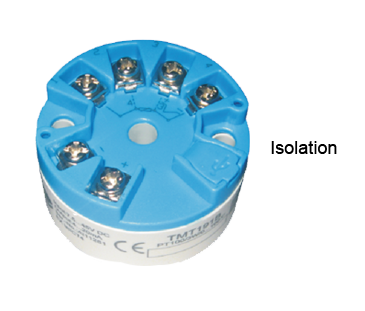

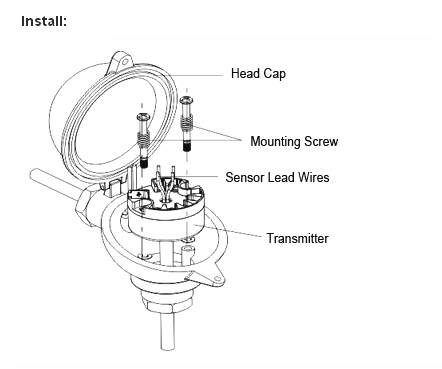

MST10RL RTD Input

- Linearised temperature measurement
with Pt100 3-wire sensor
- Low price simple operation
- Free programmable via PC-Software
- Option with eHART -Protocol
- Communication through Supply loop 4...20mA
using a standard HART -Modem

Input :

Type: pt100
Measurement ranges: -200 to 850°C
Min.measurement Ranges: 10K
Connection type: 3-wire connection
Sensor current: 0.5mA

Output :

- Output signal: 4 to 20mA
- Signal on alarm: Underranging:Linear drop to 3.8mA
- Overranging: Linear rise to 20.5mA
- Sensor break,seneor open-circuit: 3.6mA or 22mA.

Others

- Dimensions: 44 mmX22.5 mm
- Weight: Approx. 34g
- Materials: Housing: PC / Potting: epoxy

General Specification :

- Input: RTD Type pt100
- Accuracy: 0.2K or 0.1% of spanPerformance -    characteristics
- Respone time: 1s
- Calibration  temperature :+23°C(73.4K)±5K
- Long term stability: ≤0.05%year
- Switch on delay: ≤5s
- Influence of ambient: Negligible
- Load influence: Negligible
- Power supply influence: Negligible
- Resolution: 1μA
- Ambient temperature limits: 40 to +85 °C (-40 to 185 °F)
- Storage temperature: -40 to +100 °C (-40 to 212 °F)
- Condensation: Allowable
- Degree of protection: IP00/IP66 installed
- Communication through Supply loop 4...20mA using a   standard HART -Modem
- Electromagnetic compatibility (EMC): Interference    immunity and interference emission accordingto
- GB/T17626.2-1998), compliance with IEC 61000-4-3:    1995
