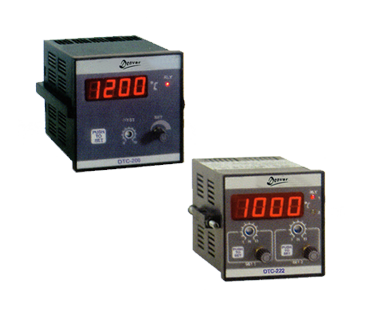

Digital Temperature Controller ( One & Two Set Point / Push To Set )




Display 3 1/2 Digital 7 Segment Red colour 0.5" ht
Cold Junction Compensation Auttomatic For T/C
Sensor Input J, K, R, S, T/C, PT-100 RTD, mV, V & 4-20 mA I/P
Accuracy J, K 1%, R, S, 0.5%, PT-100 RTD 0.2%, mV, V, mA 0.1%
Sensor open Indication By '1' at MSD
Set Point Multiturn Trimpot for each set point.
Hyst Pot 1 to 10 0c for each set point for ON- OFF Model
Tune Pot ±5 °C  for each set point for Time Proporational Model
Control Action ON/ OFF or Time Proporational
Control Output 6 Amp or 20 Amp. 1 c/o Relay, 230 V.A.C., 12 V. DC. pulse o/p for S.S.R., for each set point
Operating Temperature 0-50 °C  (RH < 80%)
Supply 230 V.A.C. ±10% 50 Hz



Dimensions (H x W x D) 96 x 96 x 120 mm 72 x 72 x 110mm
Panel Cutout (H x W) 92 x 92mm 68 x 68 mm



Salient Features:


- High Stability and Reliability

- Special Controller for Cooling with time delay

- Trip Controller for safety with manual acknowledge

- Sensor failed Protection
