Flame Proof / Indicator / Controller / Scanner

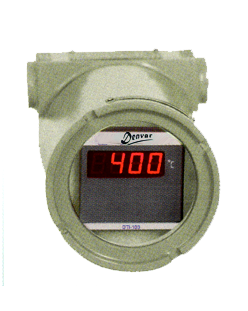

( SINGLE / MULTI POINT TEMPERATURE INDICATOR )





Display   3 1/2 digit 7 segment Red LED 0.5" ht
Cold Junction Compensation Automatic For T/C
Sensor Input J, K, R,S T/C, PT-100 RTD, mV, V& 4-20m A
Accuracy  J, K 1 % R,S 0.5%, PT-100 RTD 0.2%, mV,V,mA, 0.1%
Sensor open Indication  By '1' at MSD
Supply

200 V.AC. + 10% 50 Hz
Enclosure Gas group I, IIA, IIB as per IS-2148 / 2147/ IP - 55
Fitting Wall Mount & Pipe Mount
Option FLP Multipoint Indication 6 CH

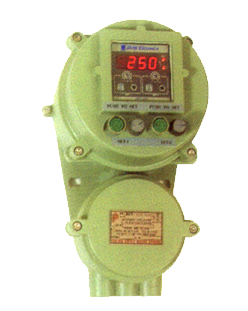

TEMPERATURE CONTROLLER ONE & TWO SET POINT PUSH TO SET







Display   3 1/2 digit 7 segment Red LED 0.5" ht
Cold Junction Compensation Automatic For T/C
Sensor Input J, K, R,S T/C, PT-100 RTD, mV, V& 4-20m A
Accuracy  J, K 1 % R,S 0.5%, PT-100 RTD 0.2%, mV,V,mA, 0.1%
Set Point Multiturn 10 turn pot  for each set point
Hyst Pot

1 to 10 0C for each  set point for ON-OFF Model
Tune Pot + 5 0C for each set point for Time Proportional  Model
Control Action ON/OFF or Time Proportional, Heat,Cool,Lo-Hi Alarm
Control Output 6 Amp 1 c/o Relay 230 V.AC. for each set point
Supply  230 V.AC. + 10% 50 Hz
Enclosure Gas group I, IIA, IIB as per IS-2148 / 2147/ IP - 55
Fitting Wall Mount
