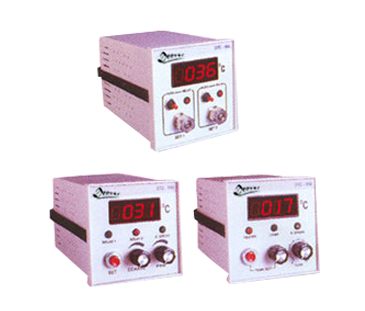

Two Set Point/ Push to Set Digital Temperature Indicators





The Features of Multi Channel Digital Temperature Indicators:
  - INPUT FROM B, E, J, K, R, S, T TYPE THERMOCOUPLES or RTD PT-100 (2,3 WIRE).
- RANGE FROM - 50 ° C TO 1600 ° C. BUILT IN COLD JUNCTION COMPENSATION.
- RESOLUTION 1°C (0.1°C OPTIONAL IN CASE OF INPUT SENSOR RTD PT-100.)
- DISPLAY 3 1/2 DIGIT L.E.D. DISPLAY. (4 1/2 DIGIT DISPLAY OPTIONAL)
- SENSOR BREAK INDICATION '1'.
- OUT PUT 6Amp RELAY (10 Amp, 16Amp & 20Amp RELAY OPTIONAL)
- INDICATION ACCURACY ± 1%
- PANEL MOUNTING 96 X 96 X 150mm
- CUTOUT 92 X 92 mm
- SUPPLY 230 VAC 50Hz OR 110 VAC ± 10%




Features Type1 Type2 Type3
Set 1 Variable (ON-OFF/ T.P.) Variable (ON-OFF/T.P.) Variable (Time Propotional)
Set 2 Variable (ON-OFF) Set1 ± X (X-user Defined) Set1 = Set2 (D-ON-OFF)
Setting Mode Multi turn Pot for both Set Coarse + Fine S.T.Pot for Set1 Multi Turn Pot




Salient Features:
  - High Stability and Reliability
- Special Controller for Cooling with time delay
- Trip Controller for safety with manual acknowledge
- Front tuning in time proportional Model
- Sensor failed Protection
