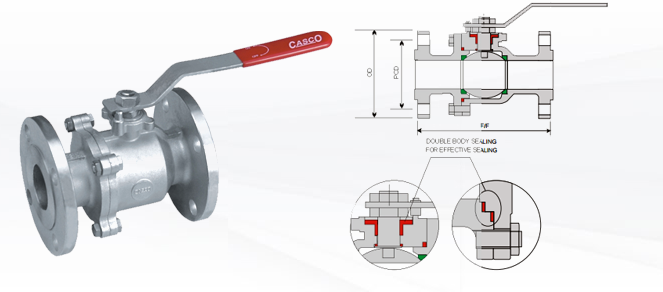

2 Piece Flange End Full Bore Ball Valve







Features Material Specifications
Design STD As per BS 5351 1 Body CF8M, CF8, CF3M, CF3, WCB Etc.
Face to Face
 As per ASME B 16.10 2 Side Piece
 CF8M, CF8, CF3M, CF3, WCB Etc
Flange End
 As per ANSI B 16.5
 3 Ball
 SS 316., SS 304, SS 316L, 304L Etc.
Testing STD
 As per BS 5146, API 598
 4 Seat PTFE, Glass Or Carbon PTFE Etc.


Salient Features
(1) Investment Castings Body, Side Piece
(2) Double Body Sealing

Hydro Test Pressure
F/F Bore ID Thread BSP/NPT

Shell
 Seat
150 #
 32 Kg/Cm2
 23 Kg/Cm2
300 # 79 Kg/Cm2
 58 Kg/Cm2


Details of Dimension


Class

150 #

300 #

Size
15
20
25
40
50
65
80
100
150
200
250
300
F/F
PCD
OD
108
60.5
89
117
70
98.5
127
79.5
108
165
98.5
127
178
120.5
152.5
190
140

178
203
152.5
191
229
190.5
229
267
241.5
279.5
292
298.5
343
330
362
406.5
356
432
482.5

F/F
PCD
OD
140
67
95
152
83
117
165
89
124
191
114
156
216
127
165
241
149
190
283
168
210
305
200
254
403.5
270
317
419.5
330
381
457
387
444
502
451
521
