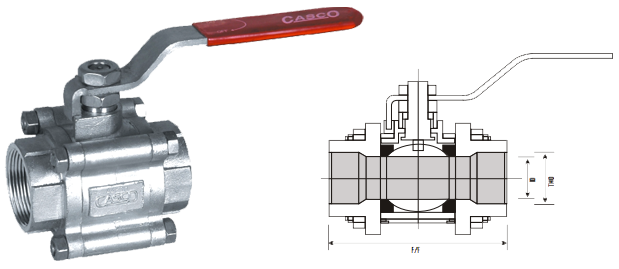

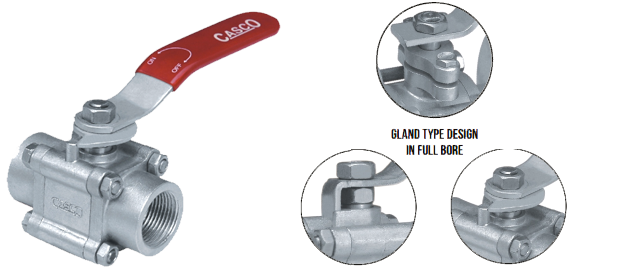

3 Piece S/E & S/W End FB/RB Ball Valve










Features Material Specifications
Design STD As per BS 5351 1 Body CF8M, CF8, CF3M, CF3, WCB Etc.
End Connector
 Socket End, Screwed End BSP/NPT 2 Side Piece
 CF8M, CF8, CF3M, CF3, WCB Etc.
Testing STD As per BS 5146, ISO 5208
 3 Ball
 SS 316., SS 304, SS 316L, 304L Etc.
Size 15mm to 50 mm
 4 Seat PTFE, Glass Or Carbon PTFE Etc.


Type Full Bore
Size F/F Bore ID Thread BSP/NPT
15
 65 12.5 ½”
20 75
 19
 ¾”
25
 85
 25
 1”
40
 110
 38
 1½”
50
 125
 50
 2”

Reduce Bore
F/F Bore ID Thread BSP/NPT
65
 11
 ½”
75
 12.5 ¾”
90
 20
 1”
105 32
 1½”
125 38
 2”
